Polyester Fiber / Phenolic Resin Hydraulic Guide Ring For Mobile Machinery

Brand Name : Kelong

Model Number : KL59

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Name : KL59 Hydraulic Guide Ring

Material : Polyester Fiber, Phenolic Resin

Temperature (max) °C : -40/+120

Sliding Speed (max)- m/s : 1.0

Style : Hydraulic Guiding Elements

Application : Mining industry / Heavy duty cylinders

Contact Now

KL59 Used In Rod And Piston Applications In Hydraulic Systems Which Provides High Load Carrying Capacity

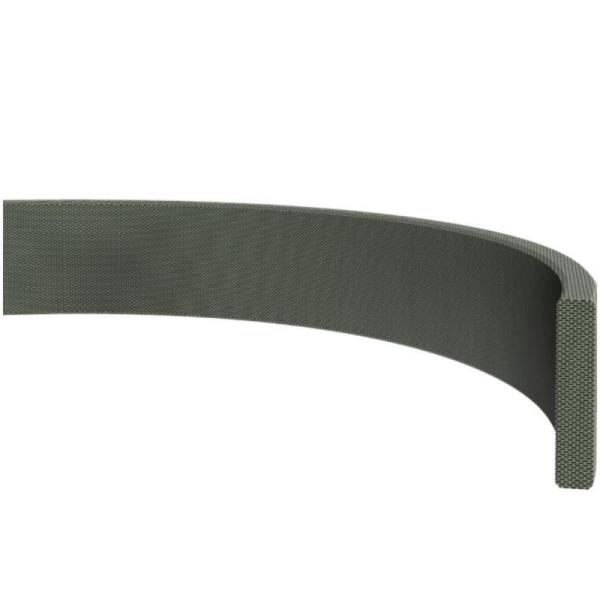

KL59 piston-rod guide rings are composite guiding elements, produced from polyester fabric and phenolic resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Advantages

• Low coefficient of friction

• High Load bearing capacity

• The high form stability at operating temperature range

• Low swelling

• Wide range of dimensions

Area of Application

• Mobile machinery


• Mining industry


• Excavators


• Presses


• Heavy duty cylinders

Polyester Fiber / Phenolic Resin Hydraulic Guide Ring For Mobile Machinery

a L (+0.2/-0) H Permissable Diameter Range MATERIAL
KL59-2.5X15 2.5 15 14.8 Ø60-Ø80 PHENOLIC
RESIN
KL59-2.5X15/1 2.5 15 14.8 Ø80-Ø100 PHENOLIC RESIN
KL59-2.5X15/2 2.5 15 14.8 Ø100-Ø150 PHENOLIC RESIN
KL59-2.5X20 2.5 20 19.8 Ø150-Ø200 PHENOLIC RESIN
KL59-2.5X25 2.5 25 24.8 Ø130-Ø150 PHENOLIC RESIN
KL59-2.5X25/1 2.5 25 24.8 Ø80-Ø100 PHENOLIC RESIN
KL59-2.5X25/2 2.5 25 24.8 Ø150-Ø200 PHENOLIC RESIN
KL59-2.5X9.7 2.5 9.7 9.5 Ø40-Ø60 PHENOLIC RESIN
KL59-2.5X9.7/1 2.5 9.7 9.5 Ø60-Ø80 PHENOLIC RESIN
KL59-2.5X9.7/2 2.5 9.7 9.5 Ø80-Ø100 PHENOLIC RESIN
KL59-2.5X9.7/3 2.5 9.7 9.5 Ø100-Ø125 PHENOLIC RESIN
