Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

Product Categories
Shaanxi Kelong New Materials Technology Co., Ltd.
Contact Now

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

Brand Name : Kelong

Model Number : KL57

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Temperature (max) °C : -40/+110

Sliding Speed (max)- m/s : 1.0

Style : Hydraulic Guiding Elements

Application : Light and medium duty cylinders

Material : POM

Contact Now

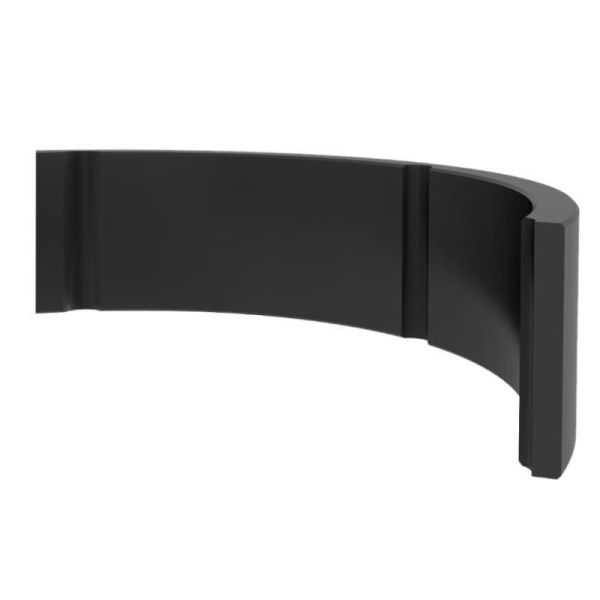

KL57 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.

BENEFITS:

• Extensive size range, either pre cut or coil lengths.


• Many sizes can be cut from one coil.


• Improves cylinder life.

Advantages

• Easy installation

• The high form stability at operating temperature range

• Wide dimension range

Area of Application

• Agricultural machinery


• Light and medium duty cylinders

• Mining


• Mobile hydraulics


• Off Highway Forestry


• Pneumatic cylinders for industrial application

Glass Fibre Reinforced Hydraulic Guide Ring Easy Installation

d (f8) D (H8) D1 (H9) L (+0.2/-0) H MATERIAL
KL57-020 20 30 20.6 13 12.8 POM
KL57-025 25 35 25.6 13 12.8 POM
KL57-030 30 40 30.6 13 12.8 POM
KL57-035 35 45 35.6 13 12.8 POM
KL57-040 40 50 40.6 16 15.8 POM
KL57-045 45 55 45.6 16 15.8 POM
KL57-045/1 45 60 45.6 16 15.8 POM
KL57-055 55 65 55.6 16 15.8 POM
KL57-065 65 75 65.6 16 15.8 POM
KL57-075 75 85 75.6 16 15.8 POM
