KL54 POM Guide Ring For Light Duty Hydraulic Applications

Product Categories
Shaanxi Kelong New Materials Technology Co., Ltd.
Contact Now

KL54 POM Guide Ring For Light Duty Hydraulic Applications

Brand Name : Cologne

Model Number : KL54

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 100,000 pcs /months

Delivery Time : 7-15 work days

Packaging Details : Opp bags

Style : Hydraulic Guiding Elements

Material : POM

Temperature (max) °C : -40/+100

Sliding Speed (max)- m/s : 1.0

Application : Agricultural machinery / Cranes / Light and medium duty cylinders / Standard industrial cylinders

Advantages : Easy installation

Contact Now

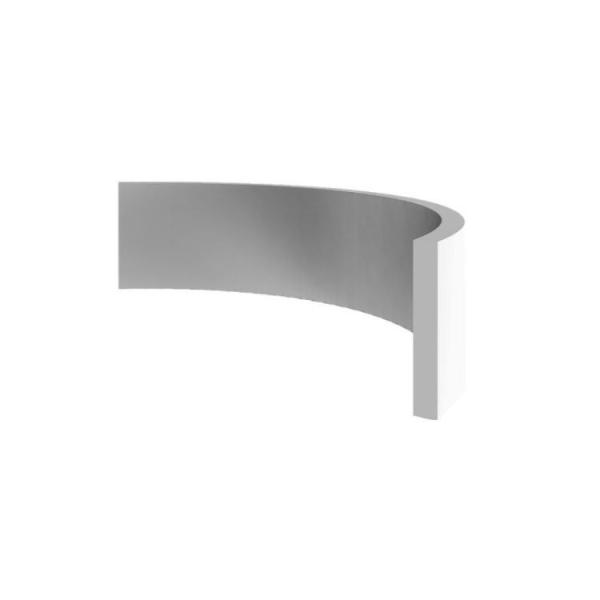

KL54 is a POM guide ring for light duty hydraulic applications.

Advantages

• Low coefficient of friction
• Easy installation
• Wide range of dimensions
• Economical sealing solution

Area of Application

• Agricultural machinery
• Cranes
• Light and medium duty cylinders
• Standard industrial cylinders

KL54 POM Guide Ring For Light Duty Hydraulic Applications

d(f8) dp(h8) Db(H8) D(H9) L (+0.2/-0) H d1 (h9) D1 (H9) MATERIAL
KL54-022 22 26 10.4 10 25.6 22.4 POM
KL54-022/1 22 26 5.4 5 25.6 22.4 POM
KL54-025 25 29 6.4 6 28.6 25.4 POM
KL54-025/1 25 29 10.4 10 28.6 25.4 POM
KL54-025/2 25 30 5.7 5.3 29.5 25.5 POM
KL54-028 28 32 6.4 6 31.6 28.4 POM
KL54-028/1 28 32 10.4 10 31.6 28.4 POM
KL54-030 30 35 15.4 15 34.5 30.5 POM
KL54-030/1 30 35 5.7 5.3 34.5 30.5 POM
KL54-030/2 30 36 9.9 9.5 35.4 30.6 POM
KL54-035 35 40 15.4 15 39.5 35.5 POM
KL54-036 36 40 6.4 6 39.6 36.4 POM
KL54-036/1 36 40 15.4 15 39.6 36.4 POM
KL54-036/2 36 40 10.4 10 39.6 36.4 POM
KL54-040 40 45 15.4 15 44.5 40.5 POM
KL54-040/1 40 45 8.4 8 44.5 40.5 POM
KL54-040/2 40 45 20.4 20 44.5 40.5 POM
KL54-045 45 50 15.4 15 49.5 45.5 POM
KL54-045/1 45 51 8.4 8 50.4 45.6 POM
KL54-045/2 45 51 20.4 20 50.4 45.6 POM
KL54-046 46 50 10.4 10 49.6 46.4 POM
KL54-050/1 50 56 8.4 8 55.4 50.6 POM
KL54-050/2 50 56 20.4 20 55.4 50.6 POM
KL54-050/3 50 56 12.9 12.5 55.4 50.6 POM
KL54-055/1 55 61 8.4 8 60.4 55.6 POM
KL54-055/2 55 61 20.4 20 60.4 55.6 POM
KL54-056 56 62 8.4 8 61.4 56.6 POM
KL54-056/1 56 62 20.4 20 61.4 56.6 POM
KL54-060 60 65 15.4 15 64.5 60.5 POM
KL54-060/1 60 66 8.4 8 65.4 60.6 POM
KL54-060/2 60 66 20.4 20 65.4 60.6 POM
KL54-065 65 70 15.4 15 69.5 65.5 POM
KL54-080 80 85 15.4 15 84.5 80.5 POM
